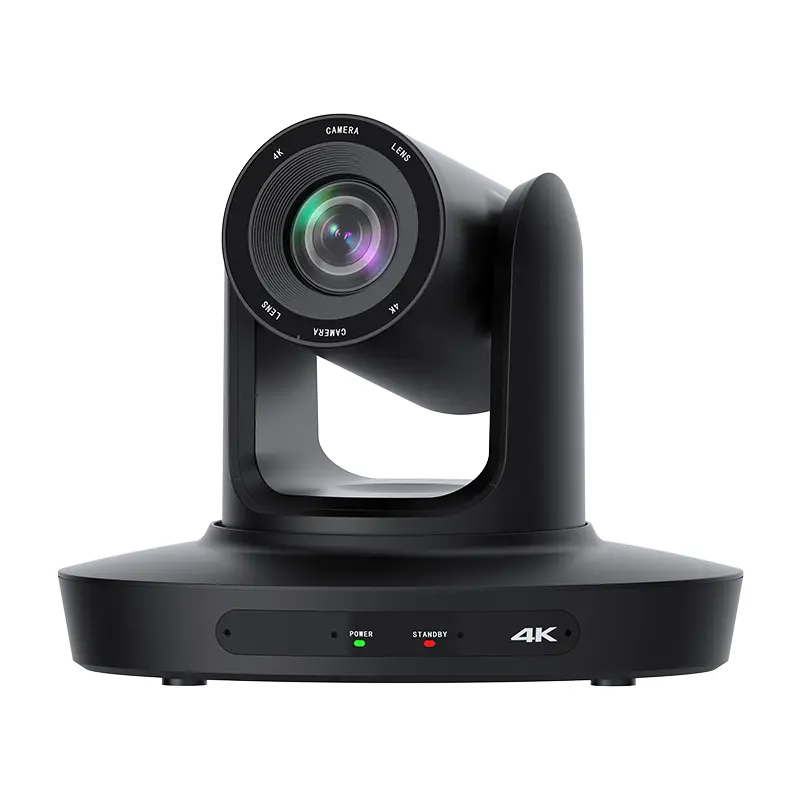

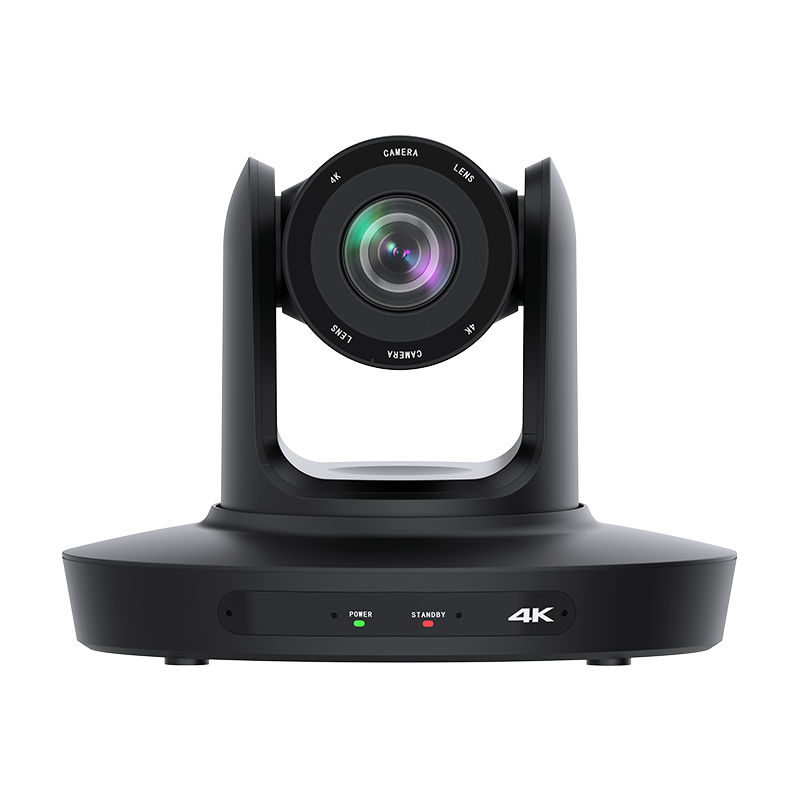

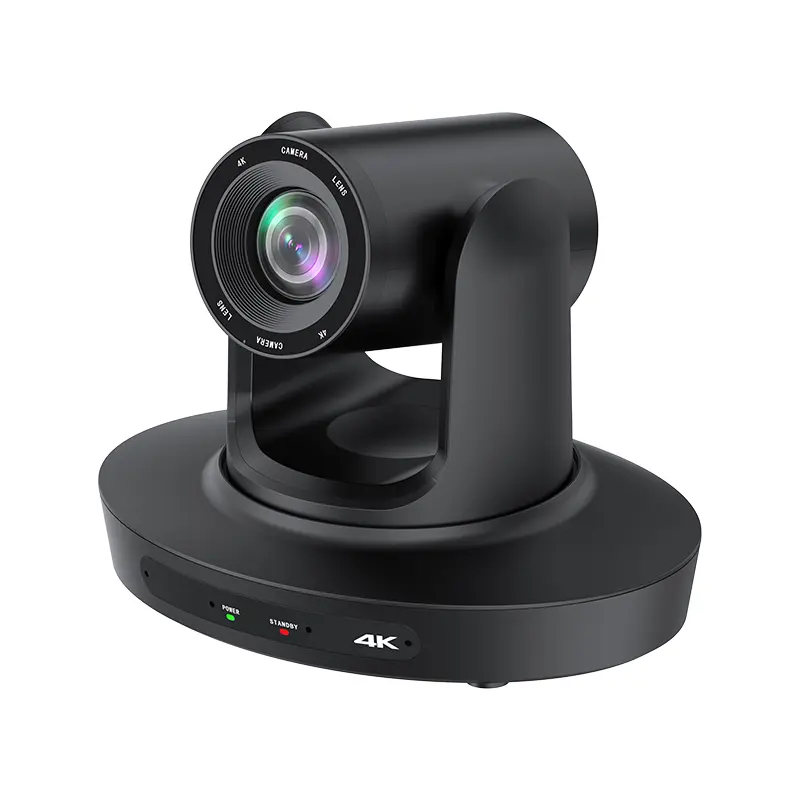

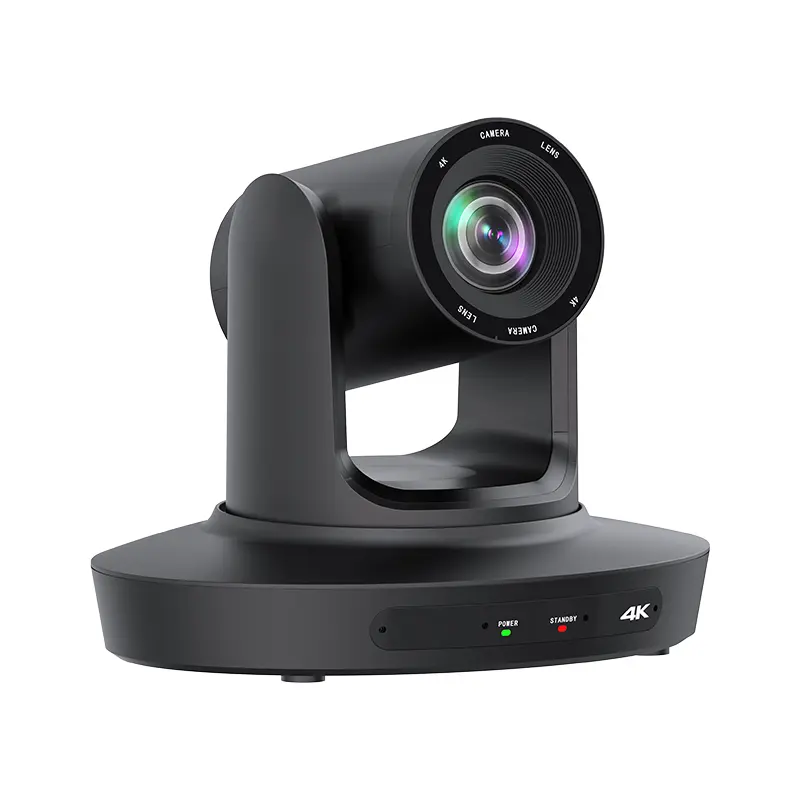

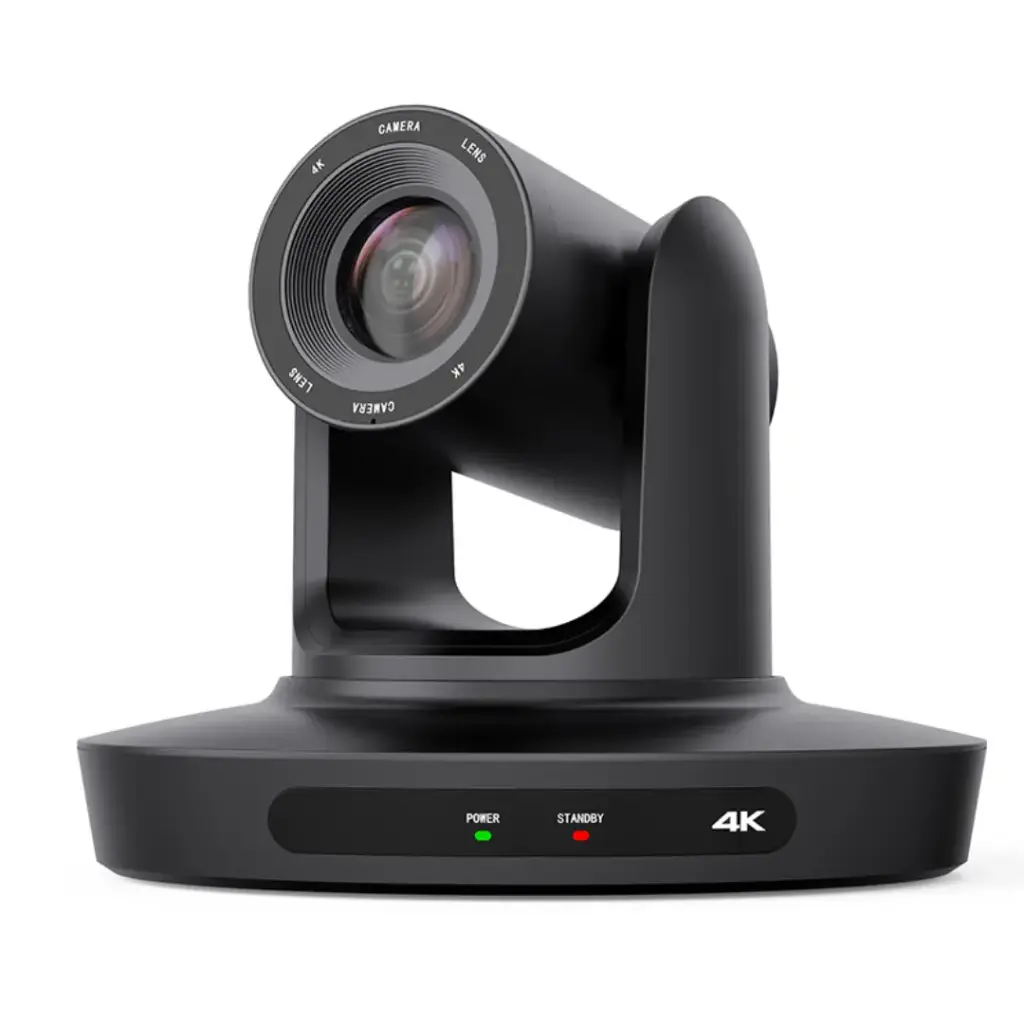

HDKATOV UH4500-20 PTZ CAMERA
- SONY 1/2.8” Progressive CMOS sensor
- High resolution with frame rate up to 4K 30fps
- Up to 20x Optical Zoom with distortion-free horizontal viewing angle
Up to 20x Optical Zoom with distortion-free horizontal viewing angle - USB3.0 + HDMI + LAN Interface, Rich Application Scenarios
USB3.0 + HDMI + LAN Interface, Rich Application Scenarios - IR Remote Control Signal Transparent Transmission Function
IR Remote Control Signal Transparent Transmission Function - Multiple Video Compression Standards
Multiple Video Compression Standards - Multiple Network and Control Protocols
Multiple Network and Control Protocols - New generation AI human tracking algorithm
New generation AI human tracking algorithm
AI Tracking
Equipped with multi-mode AI tracking, it recognizes faces, gestures, sound, and areas for automatic tracking and intelligent framing, delivering precise follow-shot and image optimization with minimal manual intervention, ideal for speeches, meetings, and teaching.
4K 30fps Video
Using the new generation 1/2.8-inch SONY high-quality sensor, it supports 4K 30fps ultra HD output, suitable for recording large scenes. With 8.29 million effective pixels, it enables multi-range shooting from wide-angle to close-up while maintaining lossless image quality.
Clapper Wind Array
Equipped with a four-microphone array, it supports far-field voice pickup up to 6 meters. Combined with intelligent noise reduction and echo cancellation algorithms, it can effectively filter out environmental noise and achieve clear omnidirectional sound capture.
Technical Specifications (Quick View)
Lens: 20x optical zoom, f=5.2mm to 104mm
FOV: 58.7° (Wide) to 3.2° (Tele)
Min. Illumination: 0.1 Lux @ (F1.5, AGC ON)
S/N Ratio: >50dB

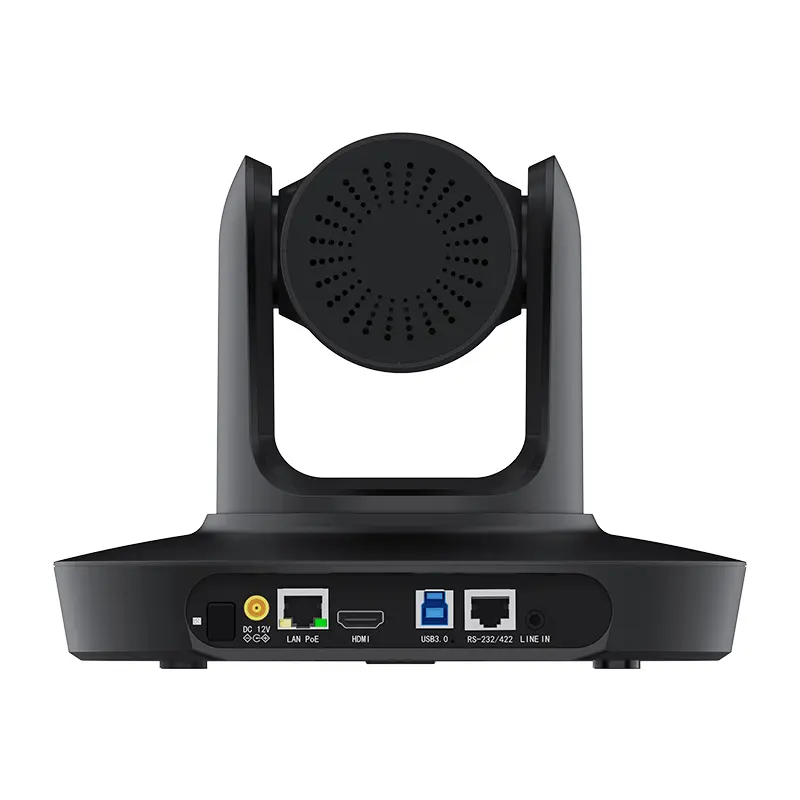

Output Formats: HDMI, USB 3.0, LAN (H.264/H.265)
Power: DC 12V / PoE (Optional)
Dimensions: 224mm x 170mm x 174mm
Weight: 1200g
